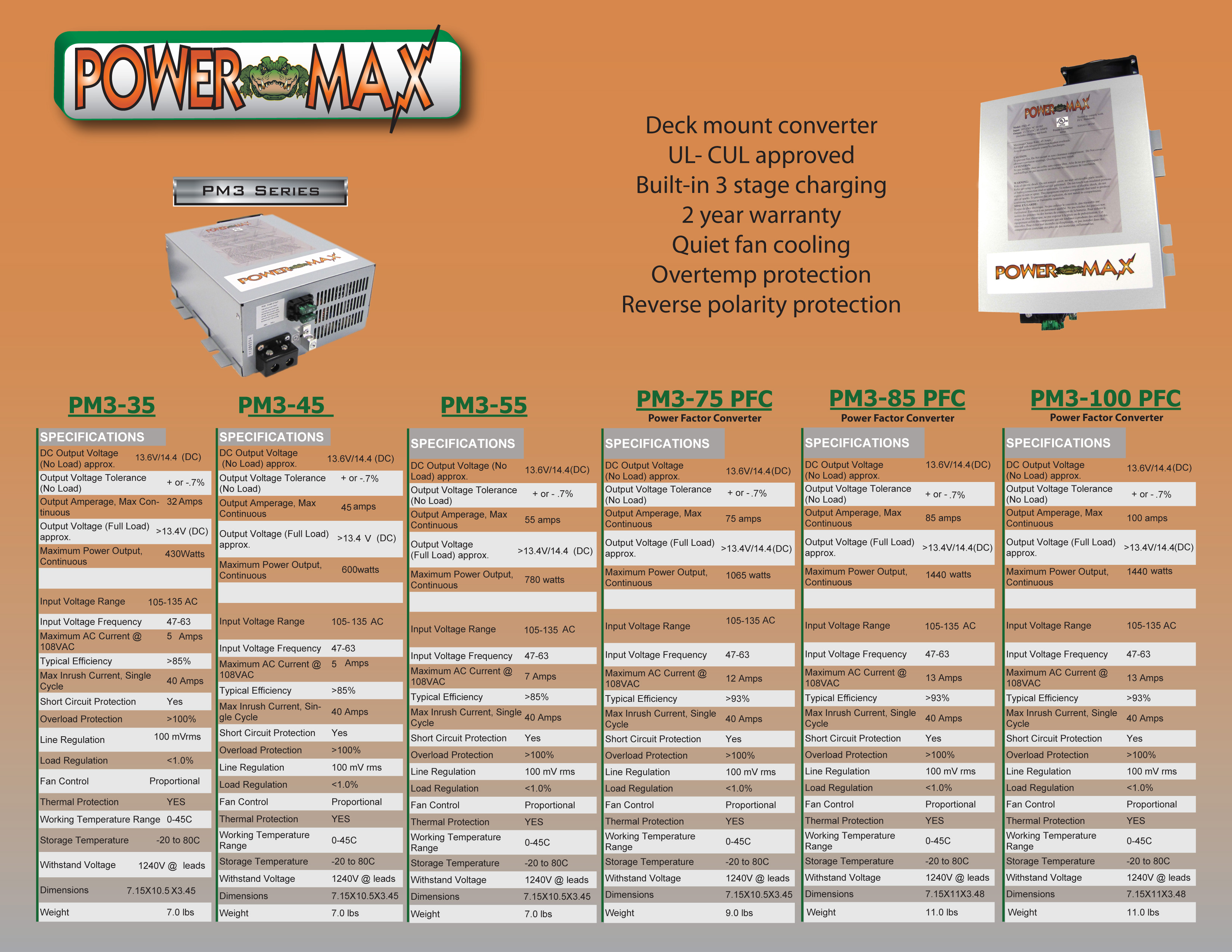

KEY FEATURES:
Automatic three-stage battery charging maintains your battery's life with three nominal voltage output models:
  • 13.2 Vdc range "float" mode
  • 13.6 Vdc range "absorption mode
  • 14.4 Vdc range"bulk" mode
  • Electronic current limiting automatically shuts down power during overload or short-circuit conditions.
  • Quiet operation in a wide range outputs. Convenient deck mount installation.
The PM3 Series converter/
chargers are versatile, advanced power source solutions. Output ratings of 35, 45, 55, 75, and
100 amps are available. Clean, reliable DC power is ideal for powering electronics, ham radio equipment and appliances.The PM3 series is designed to provide clean power with or without a battery.


Quiet operation is assured as
the cooling fan runs only when needed. Another advantage is
FCC Class B compliance, which means that the converters are designed not to cause inter-
ference with televisions, radios
or other signals.



Part Description Wt Cost Buy
PM3-35LK  35 Amp Converter with 3 Stage Charger 8 $135.00
Delivered
PM3-45LK  45 Amp Converter with 3 Stage Charger 8 $155.00
Delivered
PM3-55LK  55 Amp Converter with 3 Stage Charger 8 $169.00
Delivered
PM3-60LK 60 Amp Converter with 3 Stage Charger   $175.00
Delivered
PM3-65LK 65 Amp Converter with 3 Stage Charger   $185.00
Delivered
PM3-75LK  75 Amp Converter with 3 Stage Charger 10 $225.00
Delivered
PM3-100LK 100 Amp Converter with 3 Stage Charger 12 $245.00
Delivered
PM3-120LK 120 Amp Converter with 3 Stage Charger   $219.99
Delivered

NOW ALL MODELS ARE ADJUSTABLE



Need to replace the main board?  Now you can!

Part Description Cost Buy
PM3-35-MBA  35 Amp Main Board Assembly $135.00
Delivered
PM3-45-MBA  45 Amp Main Board Assembly $155.00
Delivered
PM3-55-MBA  55 Amp Main Board Assembly $169.00
Delivered
PM3-65-MBA 65 Amp Main Board Assembly $185.00
Delivered
PM3-75-MBA  75 Amp Main Board Assembly $225.00
Delivered
