PORTABLE
CHARGERS
PDF
Product Literature
PDF
Operating Instructions
Charge Profiles
Programmable Charge
Profiles:
Float: Regulates
the battery voltage at 2.3 volts per cell. Best for starting batteries,
and gel's
Gas &
timed shut off: Timer
trips at 2.3vpc, gassing threshold. Batteries are allowed to gas to a
maximum of 2.55vpc before shut off. Once a week, batteries are checked,
If voltage is 2.10vpc or less, charger will recycle. Best for deep cycle
batteries
Gas &
float: Timer
trips at 2.3vpc, gassing threshold. Batteries are allowed to gas to a
maximum of 2.55vpc before dropping into indefinite float of 2.26vpc.
Best for deep cycle batteries that may see long periods of inactivity.
AGM: Batteries
bulk charge to 2.3vpc, and enter absorption cycle where voltage is
allowed to climb to a maximum 2.45vpc before dropping into indefinite
float of 2.26vpc. |
NORMAL SHIPPING
IS 7 TO 21 DAYS DEPENDING
ON THE TIME OF THE YEAR - RIGHT NOW 14 TO 21 DAYS.
IF YOU ARE WILLING TO PAY FOR 2ND DAY AIR, THEY
WILL BUILD AND SHIP YOUR UNIT THE SAME OR NEXT DAY.
Golf Cars, Floor
Scrubbers, Personnel Carriers, Railroads, Aircraft, RV's, Automotive,
Pallet Trucks, All Material Handling, and Industrial Applications

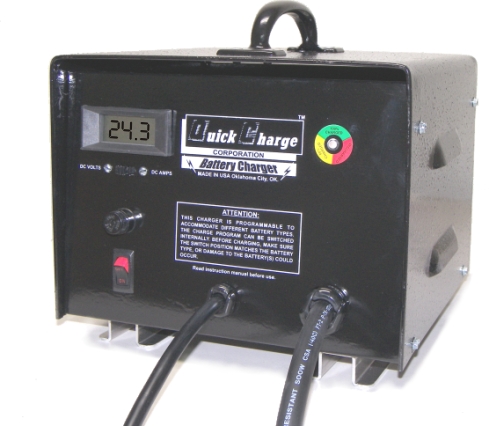

FEATURES:
* Internal
Dip Switch programmable. Charges gels, wet cell deep cycles, AGM's,
and starting batteries
* Toggle
switch LCD display between volts and amps
* Tri
color LED monitors charge progress
* Reverse
polarity protected
* Current
limited
* Optional
ambient temperature compensation for $20
* Industrial
quality 3 year warranty
| Model |
DC
VOLTS |
DC
AMPS |
AC
POWER |
Dimensions
H.D.W. in. |
WEIGHT |
BATTERY
CAPACITY
@ 20 Hr.rate |
COST |
BUY |
| QP6825 |
6-8 |
25 |
117v 60hz.
3 amps |
6.5 x 7 x 8 |
16 |
150-350 Amp Hour |
$333.95 plus
$16.99 shipping |
|
| QP1210 |
12 |
10 |
117v 60hz.
3 amps |
6.5 x 7 x 8 |
12 |
80-150 Amp Hour |
$225.95 plus
$13.99 shipping |
|
| QP1225 |
12 |
25 |
117v 60hz.
3 amps |
6.5 x 7 x 8 |
18 |
150-350 Amp Hour |
$318.95 plus
$18.99 shipping |
|
| QP1240 |
12 |
40 |
117v 60hz.
6 amps |
8.5 x 10 x 9.5 |
32 |
350-550 Amp Hour |
$476.95 plus
$32.99 shipping |
|
| QP121625 |
12-16 |
25 |
117v 60hz.
4 amps |
6.5 x 7 x 8 |
20 |
150-350 Amp Hour |
$398.95 plus
$19.99 shipping |
|
| QP122410 |
12-24 |
10 |
117v 60hz.
3 amps |
6.5 x 7 x 8 |
16 |
80-150
Amp Hour |
$328.95 plus
$16.99 shipping |
|
| QP1825 |
18 |
25 |
117v 60hz.
4 amps |
6.5 x 7 x 8 |
20 |
150-350 Amp Hour |
$421.95 plus
$19.99 shipping |
|
| QP246 |
24 |
6 |
117v 60hz.
2 amps |
6.5 x 7 x 8 |
14 |
80-150 Amp Hour |
$225.95 plus
$14.99 shipping |
|
| QP2410 |
24 |
10 |
117v 60hz.
3 amps |
6.5 x 7 x 8 |
16 |
80-150 Amp Hour |
$278.95 plus
$16.99 shipping |
|
| QP2415 |
24 |
15 |
117v 60hz.
3 amps |
6.5 x 7 x 8 |
16 |
80-150 Amp Hour |
$323.95 plus
$16.99 shipping |
|
| QP122425 |
12-24 |
25 |
117v 60hz.
6 amps |
8.5 x 10 x 9.5 |
32 |
150-350 Amp Hour |
$460.95 plus
$32.99 shipping |
|
| QP2425 |
24 |
25 |
117v 60hz.
6 amps |
8.5 x 10 x 9.5 |
32 |
150-350 Amp Hour |
$415.95 plus
$32.99 shipping |
|
| QP2440 |
24 |
40 |
117v 60hz.
11 amps |
8.5 x 10 x 9.5 |
38 |
250-450
Amp Hour |
$540.95 plus
$38.99 shipping |
|
| QP3212 |
32 |
12 |
117v 60hz.
6amps |
8.5 x 10 x 9.5 |
30 |
150-350 Amp Hour |
$339.95 plus
$29.99 shipping |
|
| QP3225 |
32 |
25 |
117v 60hz.
10 amps |
8.5 x 10 x 9.5 |
34 |
150-350 Amp Hour |
$503.95 plus
$34.99 shipping |
|
| QP3612 |
36 |
12 |
117v 60hz.
4 amps |
6.5 x 7 x 8 |
20 |
80-150 Amp Hour |
$339.95 plus
$19.99 shipping |
|
GC3620
QP3620 |
36 |
20 |
117v 60hz.
10 amps |
7 x 7 x 8 |
28 |
150-250 Amp Hour |
$386.95 plus
$28.99 shipping |
|
| QP3625 |
36 |
25 |
117v 60hz.
10 amps |
8.5 x 10 x 9.5 |
34 |
150-350 Amp Hour |
$508.95 plus
$34.99 shipping |
|
| QP3640 |
36 |
40 |
117v 60hz.
15 amps |
8.5 x 10 x 11 |
50 |
350-550 Amp Hour |
$612.95 plus
$49.99 shipping |
|
GC4815
QP4815 |
48 |
15 |
117v 60hz.
10 amps |
7 x
7 x 8 |
27 |
80-180 Amp Hour |
$386.95 plus
$27.99 shipping |
|
| QP4825 |
48 |
25 |
117v 60hz.
13 amps |
8.5 x 10 x 9.5 |
36 |
150-350 Amp Hour |
$557.95 plus
$36.99 shipping |
|
QP4825
w/Yamaha
replaces
SCR481717 |
48 |
25 |
117v 60hz.
13 amps |
8.5 x 10 x 9.5 |
36 |
150-350 Amp Hour |
$557.95 plus
$36.99 shipping |
|
| QP4840 |
48 |
40 |
117v 60hz.
23 amps |
8.5 x 10 x 11 |
52 |
350-550 Amp Hour |
$650.95 plus
$49.99 shipping |
|
| QP6020 |
60 |
20 |
117v 60hz.
16 amps |
8.5 x 10 x 9.5 |
36 |
150-350 Amp Hour |
$581.95 plus
$36.99 shipping |
|
| QP6420 |
64 |
20 |
117v 60hz.
17 amps |
8.5 x 10 x 9.5 |
36 |
150-350 Amp Hour |
$590.95 plus
$36.99 shipping |
|
| QP7220 |
72 |
20 |
117v 60hz.
18 amps |
8.5 x 10 x 9.5 |
42 |
150-350 Amp Hour |
$559.95 plus
$41.99 shipping |
|

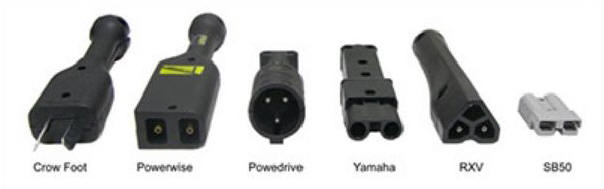

SB50 or SB175 are included in the price
All other plugs cost $20 extra!
for your information:
SB175 - 2 1/8" x 3 1/8" -
SB350 - 2 1/4" x 4 1/4"
Call to order so that you get the correct DC plug.
All models available in 230v 50 Hz.
Models QPXU
All units ship from the factory in Oklahoma City, OK. |
