Do YOU Really need a new charger? Trying to charge dead
batteries will not work!
There has to be a minimum voltage in the batteries or the charger will
not work!
Older Lester chargers need about 70% of normal charge
and the newer chargers made beginning in 2004 need to sense only 5
volts
For the Quick Chargers - on boards 50% - 10volts on the portables
Golf Cars, Floor Scrubbers,
Personnel Carriers, RV's, Electric Vehicles, Railroads, Aircraft,
Automotive, All Material Handling, and Industrial Applications
One touch programming allows these chargers to
charge deep cycle, wet starting, gel, and AGM batteries with precision. Also
programmable is type of gassing mode, and recycle times when in shut off
mode. The 2 digit LED displays percent of charge to complete cycle, and
battery voltage. A tricolor LED also follows charge progress. Can be
temperature compensated. DC current limiting, and polarity protected.
F1 - Float:Battery
voltage rises to 2.3 volts per cell max before dropping into a low float of
2.26
F2 - Gas &
timed shut off:Timer
trips at 2.3vpc, gassing threshold. Batteries are allowed to gas to a
maximum of 2.55vpc before shut off. Programmable recycle time. Best for deep
cycle batteries
F3 - Gas &
float:Timer
trips at 2.3vpc gassing threshold. Batteries are allowed to gas to a maximum
of 2.55vpc before dropping into indefinite float of 2.26vpc. Best for deep
cycle batteries where an indefinite maintenance charge is desired.
F4 - AGM:Batteries
bulk charge to 2.3vpc, and enter absorption cycle where voltage is allowed
to climb to a maximum 2.45vpc before dropping into indefinite float of
2.26vpc.
Model SCP General
purpose
Single voltage dedicated Chargers
ranging from 10 - 40 amps. Available with SB, golf car, clamps, or
other DC connectors.
Dedicated High voltage models for EV's.
Model SCPXW can be used on 117v or 230 volt circuits. The
charger auto switches to output 12 amps at 117 volt, or 20 amps at
230v.
Other voltages available - 208 - 220 - 230 volts - must specify if
different from above!

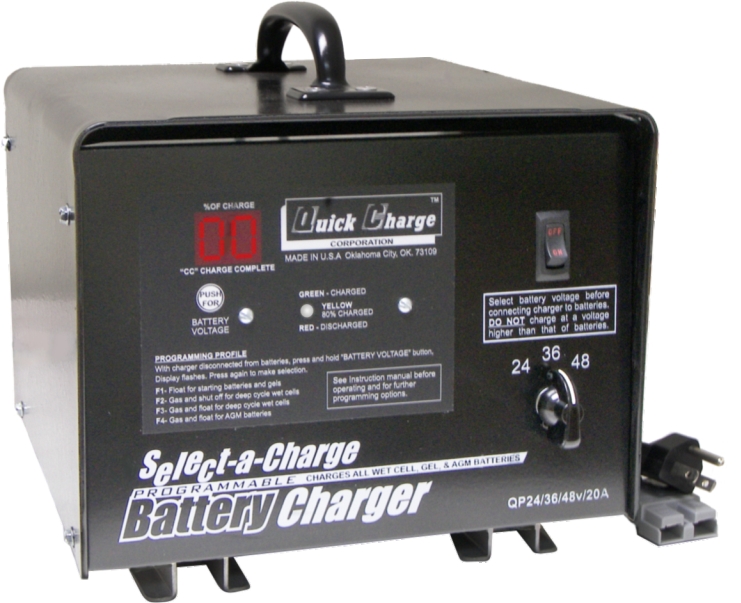

Model
SCP24364820MULTI
VOLTAGE
A multi voltage charger rated at 24,
36, 48 volt with a 20 amp output, and 117 volt input. It is ideal
for golf carts, personnel carriers, floor scrubbers, pallet jacks,
and other light material handling equipment. Great for rental use,
or all around shop charger.
A multi voltage charger rated at 24,
36, 48 volt with a 50, 40, 30 amp output respectively, and 117 volt
input. This charger was designed for part time forklift use, when
230 volt power is not available, such as might be encountered in a
rental program. It is not recommended for long term use on full
sized forklifts. It can also be used on golf carts, personnel
carriers, floor scrubbers, pallet jacks, and other light material
handling equipment. Great for rental use, or all around shop
charger.
