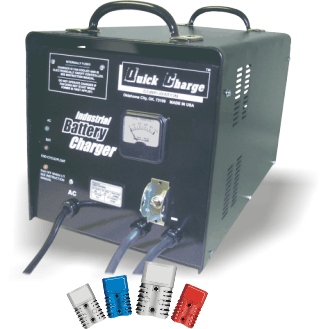

Quick Charge 60 Amp Industrial Chargers

60 AMP CHARGERS

40 & 60 AMP

SELECT-A-CHARGE

Forklifts, Wind and Solar systems, EV's, all Industrial Applications.

Economical yet powerful enough to handle most forklift applications these chargers are designed to withstand continuous duty use quietly and efficiently. Energy savings of as much as 25% can be expected over ferroresonant chargers. The linear 100% copper transformer and SCR control give years of trouble free service. All models do their job unattended and carefree. When service is necessary, the modular construction allows for easy field service. Or use our rapid return factory service. Recommended battery size, 450-800 amp hour @ 20 hour rate. 3 YEAR WARRANTY. Made in U.S.A.

Charge Profiles:

Float (QSSE): Regulates the battery voltage at 2.3 volts per cell. Best for starting batteries, and gel's

Gas & timed shut off (QSSET): Timer trips at 2.3vpc, gassing threshold. Batteries are allowed to gas to a maximum of 2.55 volts per cell before shut off. Best for deep cycle batteries

Model	DC VOLTS	DC AMPS	AC POWER	Dimensions H.D.W. in.	WEIGHT	BATTERY CAPACITY @ 20 Hr.rate	COST	BUY
QSSE1260	12	60	117v 60hz. 9 amps	10 x 9.5 x 17.5	58	450-800 Amp Hour	$603
QSSE1660	16	60	117v 60hz. 12 amps	10 x 9.5 x 17.5	68	450-800 Amp Hour	$665
QSSE2460	24	60	117v 60hz. 15 amps	10 x 9.5 x 17.5	68	450-800 Amp Hour	$665
QSSE3260	32	60	230v 60hz. 13 amps	10 x 9.5 x 17.5	72	450-800 Amp Hour	$747
QSSE3660	36	60	230v 60hz. 13 amps	10 x 9.5 x 17.5	75	450-800 Amp Hour	$747
QSSE4860	48	60	230v 60hz. 17 amps	10 x 9.5 x 17.5	75	450-800 Amp Hour	$747
QSSE6450	64	50	230v 60hz. 17 amps	10 x 9.5 x 17.5	75	450-800 Amp Hour	$808
QSSE7240	72	40	230v 60hz. 17 amps	10 x 9.5 x 17.5	75	450-800 Amp Hour	$770
QSSE9640	96	40	230v 60hz. 17 amps	10 x 9.5 x 17.5	75	450-800 Amp Hour	$808
QSSET1260	12	60	117v 60hz. 9 amps	10 x 9.5 x 17.5	58	450-800 Amp Hour	$603
QSSET1660	16	60	117v 60hz. 12 amps	10 x 9.5 x 17.5	68	450-800 Amp Hour	$665
QSSET2460	24	60	117v 60hz. 15 amps	10 x 9.5 x 17.5	68	450-800 Amp Hour	$665
QSSET3260	32	60	230v 60hz. 13 amps	10 x 9.5 x 17.5	75	450-800 Amp Hour	$747
QSSET3660	36	60	230v 60hz. 13 amps	10 x 9.5 x 17.5	75	450-800 Amp Hour	$747
QSSET4860	48	60	230v 60hz. 17 amps	10 x 9.5 x 17.5	75	450-800 Amp Hour	$747
QSSET6450	64	50	230v 60hz. 17 amps	10 x 9.5 x 17.5	75	450-800 Amp Hour	$808
QSSET7240	72	40	230v 60hz. 17 amps	10 x 9.5 x 17.5	75	450-800 Amp Hour	$770
QSSET9640	96	40	230v 60hz. 17 amps	10 x 9.5 x 17.5	75	450-800 Amp Hour	$808

All models available in 230 volt 50 Hz.
PLUS ACTUAL SHIPPING CHARGES
a separate request for funds will be sent upon shipment

SELECT-A-CHARGE 40 & 60 AMP

Model	DC VOLTS	DC AMPS	AC POWER	Dimentins H.D.W. in.	WEIGHT	BATTERY CAPACITY @ 20 Hr.rate	COST	BUY
SCS1260	12	60	117v 60hz. 9 amps	10 x 9.5 x 17.5	58	450-800 Amp Hour	$618
SCS1660	16	60	117v 60hz. 12 amps	10 x 9.5 x 17.5	68	450-800 Amp Hour	$680
SCS2460	24	60	117v 60hz. 15 amps	10 x 9.5 x 17.5	68	450-800 Amp Hour	$680
SCSX3260	32	60	230v 60hz. 13 amps	10 x 9.5 x 17.5	72	450-800 Amp Hour	$762
SCSX3660	36	60	230v 60hz. 13 amps	10 x 9.5 x 17.5	75	450-800 Amp Hour	$762
SCSX4860	48	60	230v 60hz. 17 amps	10 x 9.5 x 17.5	75	450-800 Amp Hour	$803
SCSX6450	64	50	230v 60hz. 15 amps	10 x 9.5 x 17.5	75	450-800 Amp Hour	$807
SCSX7240	72	40	230v 60hz. 15 amps	10 x 9.5 x 17.5	75	450-800 Amp Hour	$770
SCSX9640	96	40	230v 60hz. 18 amps	10 x 9.5 x 17.5	75	450-800 Amp Hour	$807

All models available in 230 volt 50 Hz.
PLUS ACTUAL SHIPPING CHARGES
a separate request for funds will be sent upon shipment

Select-A-Charge

All the quality features of the regular QSS chargers, plus one touch programming allows these chargers to charge deep cycle, wet starting, gel, and AGM batteries with precision. Also programmable is type of gassing mode, and recycle times when in shut off mode. The 2 digit LED displays percent of charge to complete cycle, and battery voltage. A tricolor LED also follows charge progress. Can be temperature compensated. DC current limiting, and polarity protected.

Float Regulates the battery voltage at 2.3 volts per cell. Best for starting batteries, and gel's

Gas & timed shut off Timer trips at 2.3vpc, gassing threshold. Batteries are allowed to gas to a maximum of 2.55vpc, before shut off. Best for deep cycle batteries

Gas & float Timer trips at 2.3vpc, gassing threshold. Batteries are allowed to gas to a maximum of 2.55vpc before dropping into indefinite float of 2.26 volts per cell. Best for deep cycle batteries that may see long periods of inactivity.

AGM Batteries bulk charge to 2.3vpc, and enter absorption cycle where voltage is allowed to climb to a maximum 2.45vpc before dropping into indefinite float of 2.26vpc.
